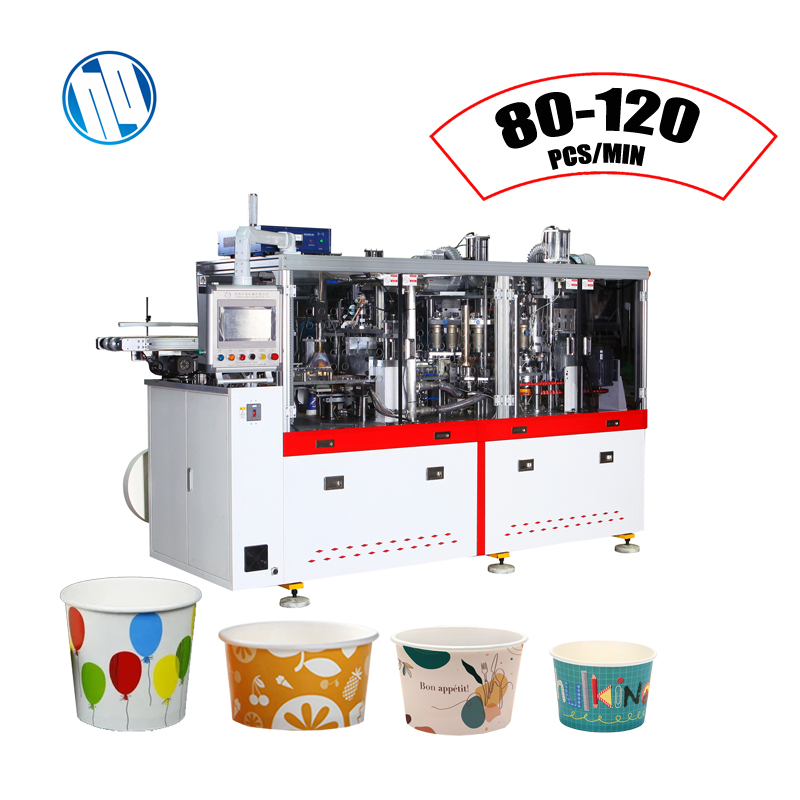

The mechanical transmission is mainly by gears to two longitudinal shafts. Structure is simplicity and effective, leaves enough room for repair and maintenance. The main motor’s output is from both sides of motor shaft, therefore the force transmission is balance.

The open type indexing gear (turret 10 : turret 8 arrangement to make all function more reasonable). We choose IKO heavy load pin roller bearing for indexing gear cam follower, oil and air pressure gauges, digital transmitters are use (Japan Panasonic).

Transmission means use CAM and gears to ensure synchronized motion, high operational durability, and smooth mechanical transitions during high-speed production cycles.

The feed table is a double deck design to prevent paper dust go into the main frame, which can extend the service life of gear oil in the machine frame.

The second turret equipped with 8 working stations. So additional functions such as third rim rolling station (for thick paper better rim rolling) or grooving station can be realized.

Folding wings, knurling wheel and brim rolling stations are adjustable above main table, no adjustment needed inside the main frame so that the work is much easier and time saving.

Electric control cabinet: The whole machine is controlled by Mitsubishi high-end PLC. All motors controlled by separate frequency inverters. Rim rolling / bottom knurling / bottom curling motors all can be adjusted separately which make the machine adapt wider paper conditions and better rim rolling performance.

Heaters are using Leister, made in Swiss, ultrasonic for side seam supplemental to secure high speed sealing quality under various material conditions.

Paper low level or paper missing and paper-jam etc., all these faults will display precisely in touch panel alarm window for rapid troubleshooting.
