Famous FCM200 non-round container forming machine Manufacturer, Suppliers

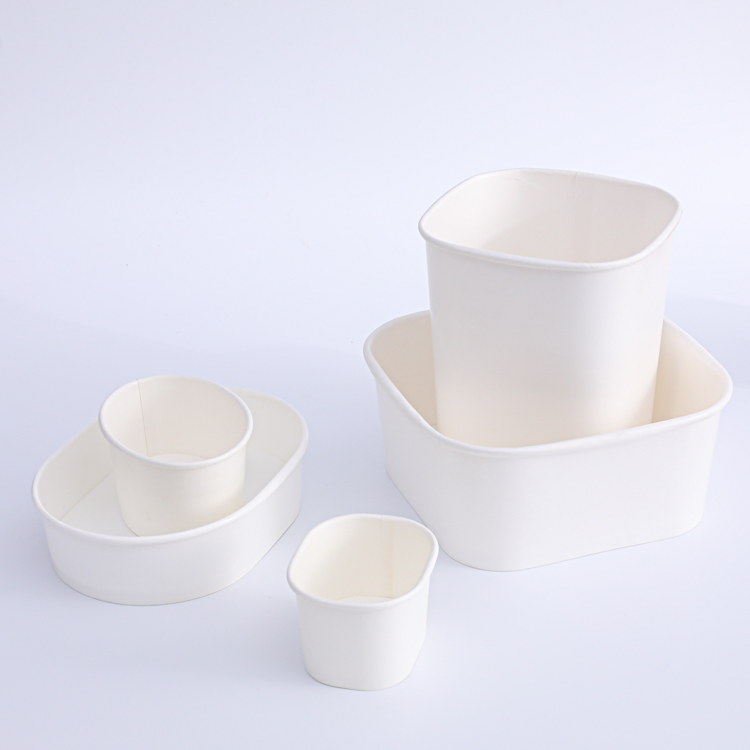

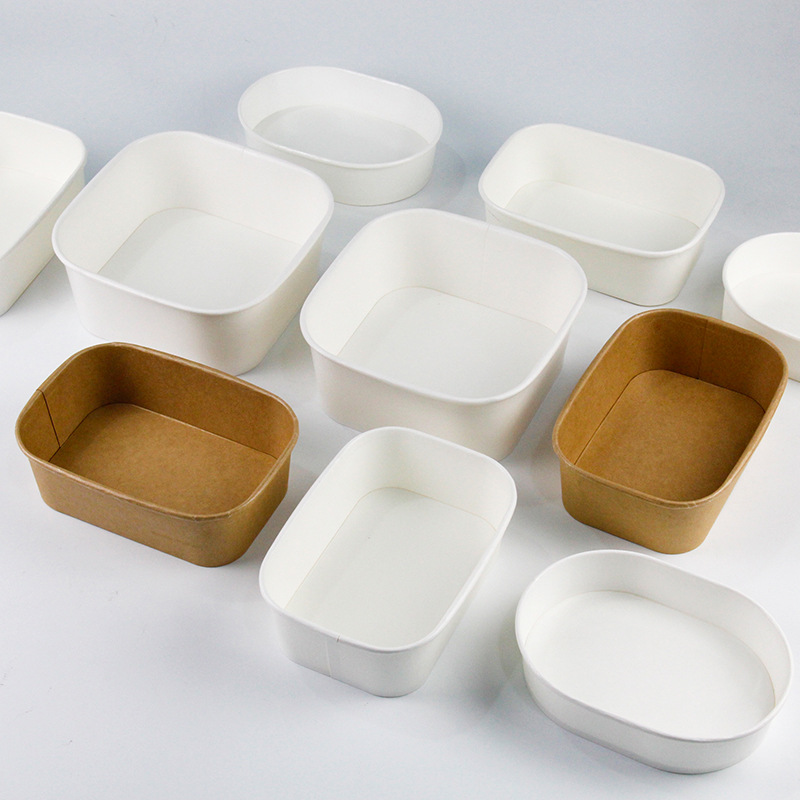

FCM200 is designed to produce non-round paper containers with stable production speed 50-80pcs/min. The shape can be rectangular, square, oval, non-round…etc.

Nowadays, more and more paper packaging been used for food packaging, soup container, salad bowls, take away containers, rectangular and square shape take away containers, not only for oriental food diet, but also for Western style food like salad, spaghetti, pasta, seafood, chicken wings…etc.

Send Inquiry

Product Description

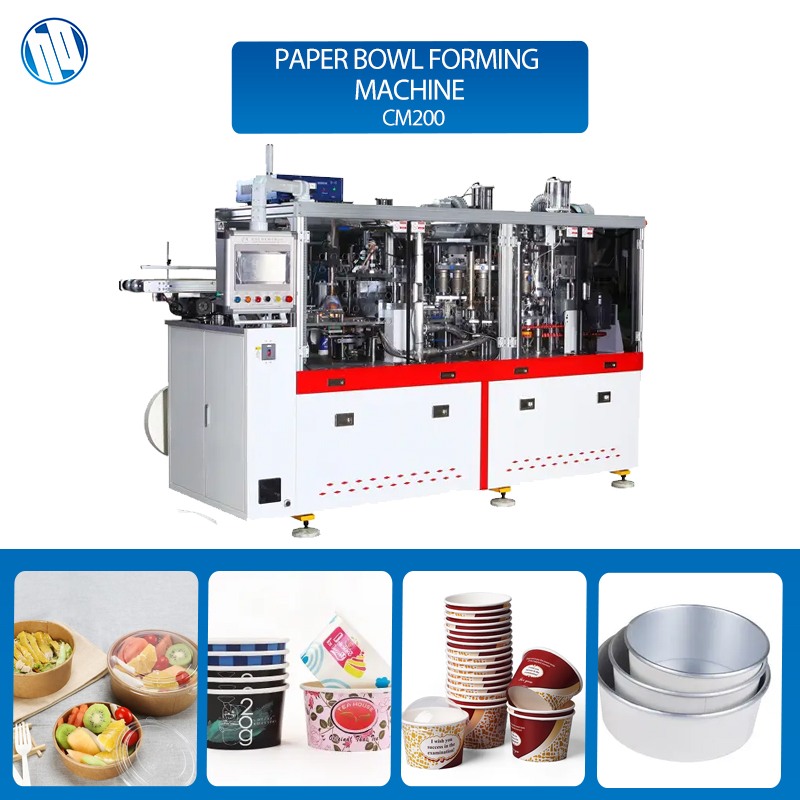

FCM200 is designed to produce non-round paper containers with stable production speed 50-80pcs/min. The shape can be rectangular, square, oval, non-round…etc. Nowadays, more and more paper packaging been used for food packaging, soup container, salad bowls, take away containers, rectangular and square shape take away containers, not only for oriental food diet, but also for Western style food like salad, spaghetti, pasta, seafood, chicken wings…etc. Especially for rectangular containers, which are quite popular nowadays because it is stackable, recyclable, and distinctive shape. Comparing to normal traditional round shape containers, rectangular shape containers can save storage as well as transportation costs. Rectangular cup forming machine can make you stick out from crowd of competitors. It's working from paper blank pile, bottom punching work from the paper roll, with the both hot air heater and ultrasonic system for side sealing.

★ Top Length

90 - 175mm

★ Top Width

80 - 125mm

★ Total Height

45 - 135mm

★ Customization

Other sizes upon request

Compatible Materials: Single PE / PLA, Double PE / PLA, PE / Aluminum or water based biodegradable materials coated paper board

Key System Features

TRANSMISSION

The mechanical transmission is mainly by gears to two longitudinal shafts. Structure is simple and effective, which makes repair and maintenance more convenient and time saving.
The main motor’s output is from both sides of motor shaft, therefore the force transmission is balance.
The open type indexing gear (turret 10 : turret 8 arrangement to make all function more reasonable). We choose IKO (CF20) heavy load pin roller bearing for indexing gear cam follower, oil and air pressure gauges, digital transmitters are use (Japan Panasonic).

HUMANIZED DESIGN

Front feed table is a double deck design which could prevent paper dust go into the main frame, which can extend the service life of gear oil inside machine frame.
Folding wings, knurling wheel and brim rolling stations are adjustable above main table, no adjustment needed inside the main frame.

ELECTRICAL CONFIGURATION

Electric control cabinet: The whole machine is controlled by PLC, we choose Mitsubishi high-end product.
All motors are independent controlled by frequency invertors, these can adapt wide range of paper character and could get better rim rolling and bottom finishing effect.
Heaters are using Leister, a well-know and reliable brand made in Swiss, ultrasonic for side seam supplemental.
Lack of paper blank or paper missing and paper-jam etc., all these faults will display precisely in touch panel alarm window.

Technical Specifications

Specification	FCM200 Details
Paper container size	Top length 90-175mm \| Top width 80-125mm \| Total height 45-137mm
Production speed	50-80 pcs/min
Side sealing method	Hot air heating & ultrasonic
Bottom sealing method	Hot air heating
Rated power	25KW
Air consumption (at 6kg/cm²)	0.4 m³/min
Overall Dimension	L2,820mm x W1,450mm x H1,850mm
Machine net weight	4,800 kg

Sustainable Innovation

Innovation and exploration into sustainable packaging is a top priority for us. Our team is committed to meet your requirements as well as help you to create new market. One of our goals is to develop alternatives to replace traditional, non-renewable, or non-recyclable packaging.

To achieve this goal, we also offer the possibility to work together with us on the development of new products; from brainstorming to drawings and from sample production through to realization.

Frequently Asked Questions (FAQ)

What types of paper containers can the FCM200 produce?

The FCM200 is designed to produce non-round paper containers including rectangular, square, oval, and other custom shapes.

What is the production speed of the FCM200?

The machine delivers a stable production speed of 50 to 80 pieces per minute.

What kinds of materials are compatible with this machine?

It supports Single PE / PLA, Double PE / PLA, PE / Aluminum, or water-based biodegradable materials coated paper board.

What sealing technologies does the FCM200 use?

It utilizes a combination of hot air heating and an ultrasonic system for side sealing, and hot air heating for bottom sealing.

How does the transmission system ensure reliability?

The mechanical transmission is driven mainly by gears to two longitudinal shafts for stability and easier maintenance. It also features a balanced main motor output, an open-type indexing gear with IKO heavy load pin roller bearings, and Panasonic digital transmitters.

How does the machine prevent internal damage from paper dust?

The front feed table features a double deck design that prevents paper dust from entering the main frame, protecting the gear oil and extending the overall service life of the machine components.
