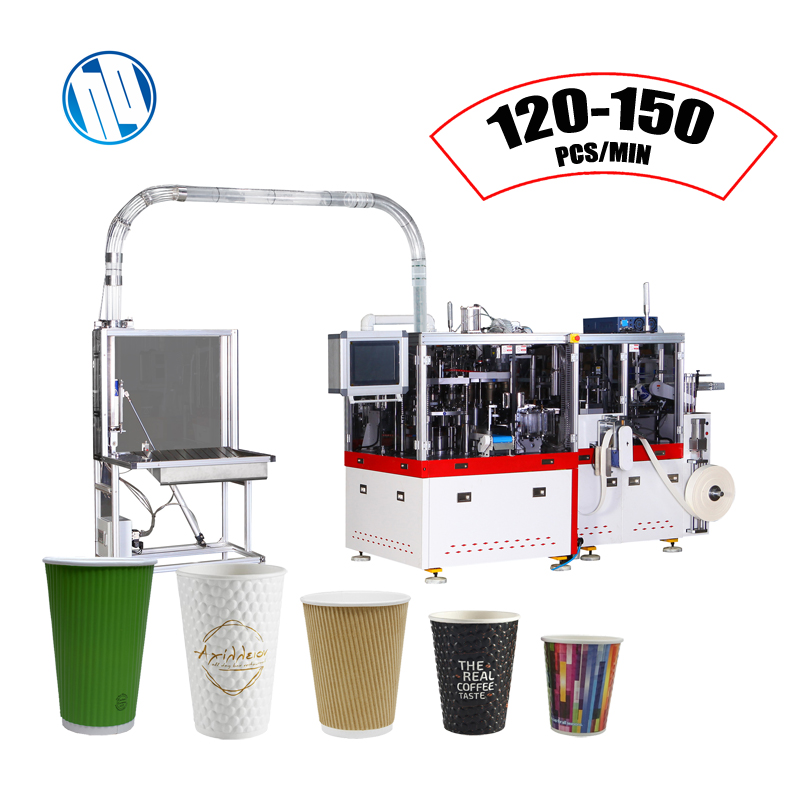

SM100 is designed to produce ripple wall cups with stable production speed 120-150pcs/min. It's working from paper blank pile, with ultrasonic system or hot melt gluing for side sealing. Ripple wall cup gets more and more popular because its unique hold feeling, anti-skid heat-resistance feature and comparing to normal hollow type double wall cup, which occupy more space during storage and transportation because of stacking height, ripple cup could be a good option.

Send Inquiry

Product Description

SM100 is designed to produce ripple wall cups with stable production speed 120-150pcs/min. It's working from paper blank pile, with ultrasonic system or hot melt gluing for side sealing.

Ripple wall cup gets more and more popular because its unique hold feeling, anti-skid heat-resistance feature and comparing to normal hollow type double wall cup, which occupy more space during storage and transportation because of stacking height, ripple cup could be a good option.

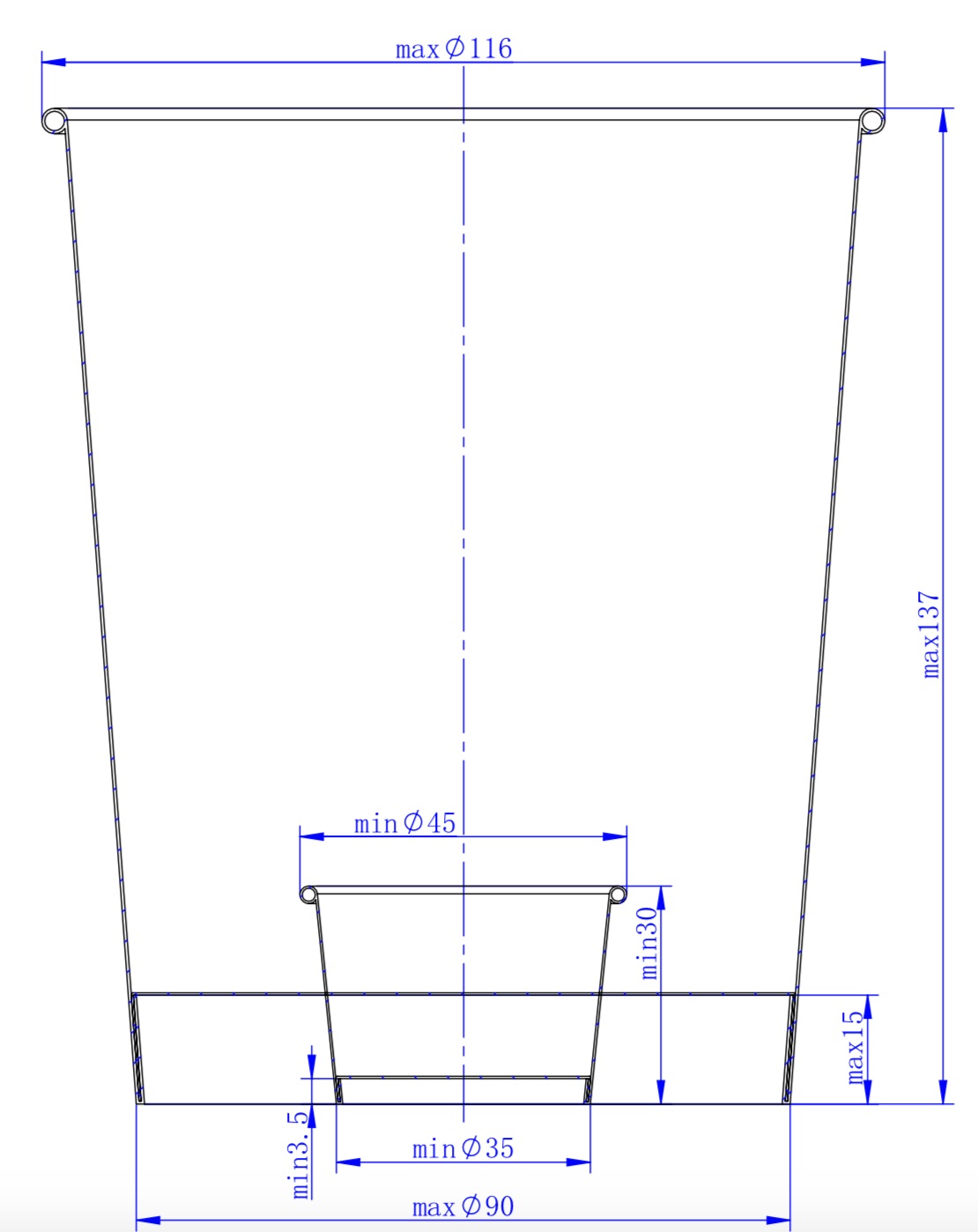

★ Dimension Parameters

★ Top Diameter: 45 - 105mm
★ Bottom Diameter: 35 - 78mm
★ Total Height: maximum 137mm
★ Other sizes upon request Coated or un-coated paper board

⚙ Mechanical Highlights

The feed table is a double deck design to prevent paper dust go into the main frame.
The mechanical transmission is mainly by gears to two longitudinal shafts. The main motor’s output is from both sides of motor shaft, therefore the force transmission is balance.
The open type indexing gear (turret 10 : turret 8 arrangement to make all function more reasonable). We choose IKO (CF20) heavy load pin roller bearing for indexing gear cam follower, oil and air pressure gauges, digital transmitters are use (Japan Panasonic).
Electric control cabinet: The whole machine is controlled by PLC, we choose Japan Mitsubishi high-end product. All motors are independent controlled by frequency invertors, these can adapt wide range of paper character.
Paper low level or paper missing and paper-jam etc., all these faults will display precisely in touch panel alarm window.

Versatility & Flexible Production

One unique feature of SM100 sleeve machine is that it is designed to produce ripple cup, normal type of double wall cup, hybrid cup with inner plastic cup and out-layer paper sleeve wrapped. Besides that, SM100 machine can be converted to a 2-32oz paper cup forming machine, which is more flexible for production range and easier to shift to paper cup production when needed.

Technical Specifications

Specification	SM100
Paper cup size of manufacture	2oz ~ 16oz
Production speed	120-150 pcs/min
Side sealing method	Ultrasonic / Hot melt gluing
Rated power	21KW
Air consumption (at 6kg/cm2)	0.4 m³/min
Overall Dimension	L2,820mm x W1,300mm x H1,850mm
Machine net weight	4,200 kg

Frequently Asked Questions

What is the production speed of the SM100 machine?

The SM100 operates at a stable production speed of 120 to 150 pieces per minute.

What kinds of cups can this machine produce?

It is designed to produce ripple wall cups, normal double wall cups, and hybrid cups (with an inner plastic cup and outer paper sleeve). Additionally, it can be converted to a 2-32oz paper cup forming machine.

What sealing methods are used for the side sealing?

The machine uses either an ultrasonic system or hot melt gluing for side sealing depending on the product requirements.

How is the paper dust prevented from entering the machine mechanism?

The feed table features a double deck design specifically engineered to prevent paper dust from entering the main frame.

What control and electrical systems are integrated into the machine?

The machine is controlled by a high-end Japan Mitsubishi PLC. All motors are independently controlled by frequency invertors, and it features Japan Panasonic digital transmitters and gauges.

What dimensions of cups can be manufactured?

The standard setup supports a Top Diameter of 45 - 105mm, a Bottom Diameter of 35 - 78mm, and a maximum total height of 137mm. Other sizes are available upon request.
