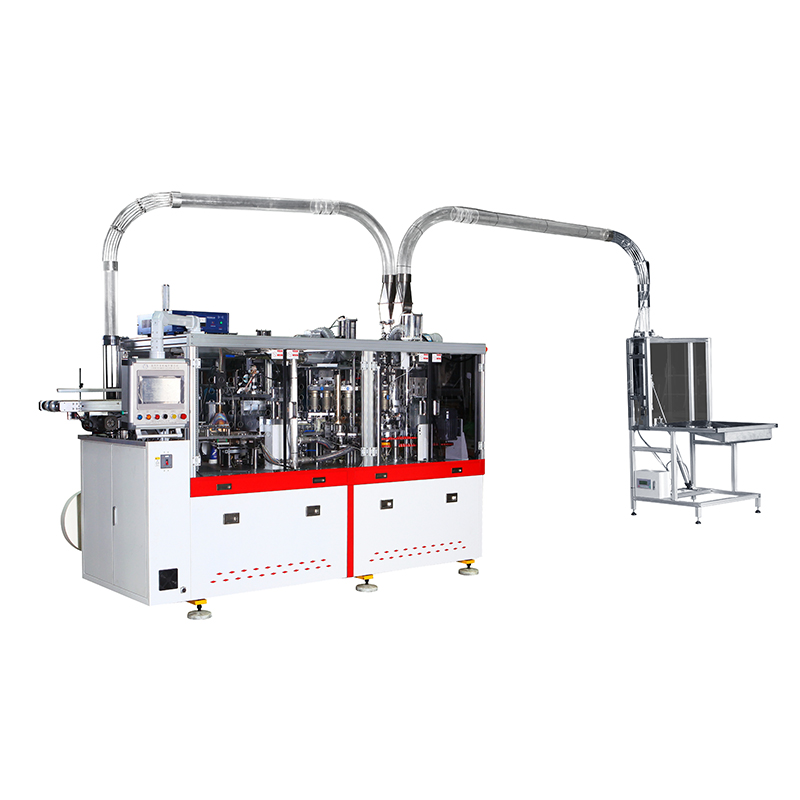

| Specification & Performance (CM100) |
| Specification |
CM100 |
| Paper cup size of manufacture |
2oz ~ 16oz |
| Production speed |
120-150 pcs/min |
| Side sealing method |
Hot air heating & ultrasonic |
| Bottom sealing method |
Hot air heating |
| Rated power |
21KW |
| Air consumption (at 6kg/cm2) |
0.4 m³/min |
| Overall Dimension |
L2,820mm x W1,300mm x H1,850mm |
| Machine net weight |
4,200 kg |
★

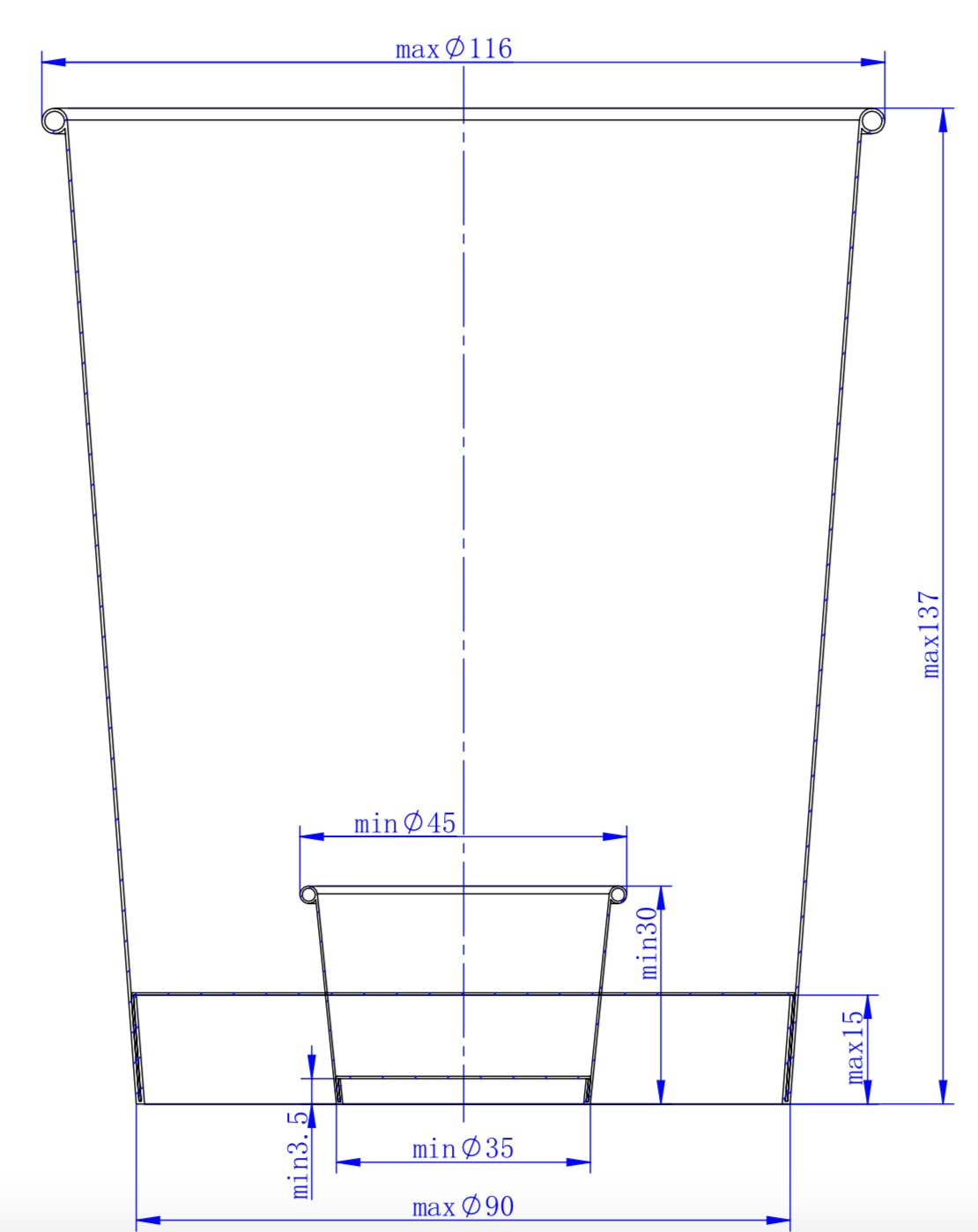

Top Diameter: 45 - 105mm
★
Bottom Diameter: 35 - 78mm
★
Total Height: maximum 137mm
★
Other sizes upon request
✔
Single PE / PLA, Double PE / PLA, PE / Aluminum or water based biodegradable materials coated paper board
❋
The feed table is a double deck design to prevent paper dust go into the main frame.
❋
The mechanical transmission is mainly by gears to two longitudinal shafts. The main motor’s output is from both sides of motor shaft, therefore the force transmission is balance.
❋
The open type indexing gear (turret 10 : turret 8 arrangement to make all function more reasonable). We choose IKO (CF20) heavy load pin roller bearing for indexing gear cam follower, oil and air pressure gauges, digital transmitters are use (Japan Panasonic).
❋
Folding wings、knurling wheel and brim rolling stations are adjustable above main table, no adjustment needed inside the main frame so that the work is much easier and time saving.
❋
Electric control cabinet: The whole machine is controlled by PLC, we choose Japan Mitsubishi high-end product. All motors are independent controlled by frequency invertors, these can adapt wide range of paper character.
❋
Heaters is using Leister, which is well-known brand made in Swiss, ultrasonic for side seam supplemental.
❋
Paper low level or paper missing and paper-jam etc., all these faults will display precisely in touch panel alarm window
We also offer you the possibility to work together with us on the development of new products; from brainstorming to drawings and from sample production through to realization.
Frequently Asked Questions
Q1: What sizes of paper cups can the CM100 machine manufacture?
The CM100 paper cup machine is designed to manufacture cups ranging from 2oz to 16oz in size, with options for other sizes upon request.
Q2: What is the production speed of this machine?
The production speed of the CM100 ranges between 120 and 150 pieces per minute.
Q3: Which sealing methods are used for the cups?
The machine utilizes hot air heating combined with ultrasonic technology for side sealing, and hot air heating for the bottom sealing.
Q4: What types of paper materials are compatible with the CM100?
It is compatible with Single PE/PLA, Double PE/PLA, PE/Aluminum, and water-based biodegradable materials coated paper board.
Q5: How does the machine handle faults like paper jams or low paper levels?
Any faults such as low paper levels, missing paper, or paper jams are precisely displayed in the alarm window of the integrated Mitsubishi touch control panel.
Q6: What brands are utilized for the electrical control and heating elements?
The machine uses a high-end Japan Mitsubishi PLC for general control, Japan Panasonic transmitters for pressure monitoring, and Swiss Leister heaters.
