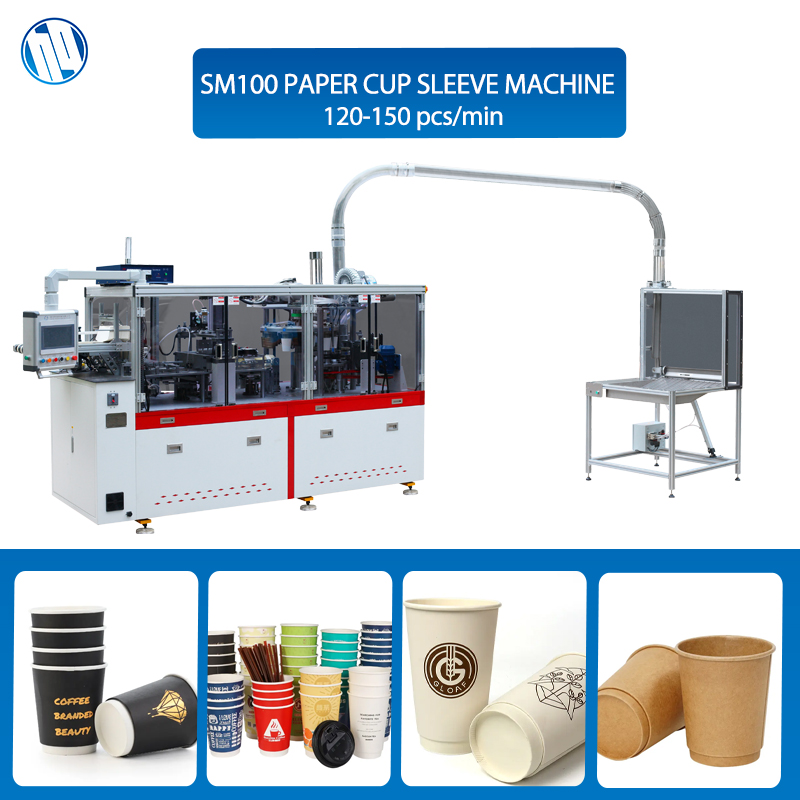

CE Certification SM100 paper cup sleeve machine Factory, Factories

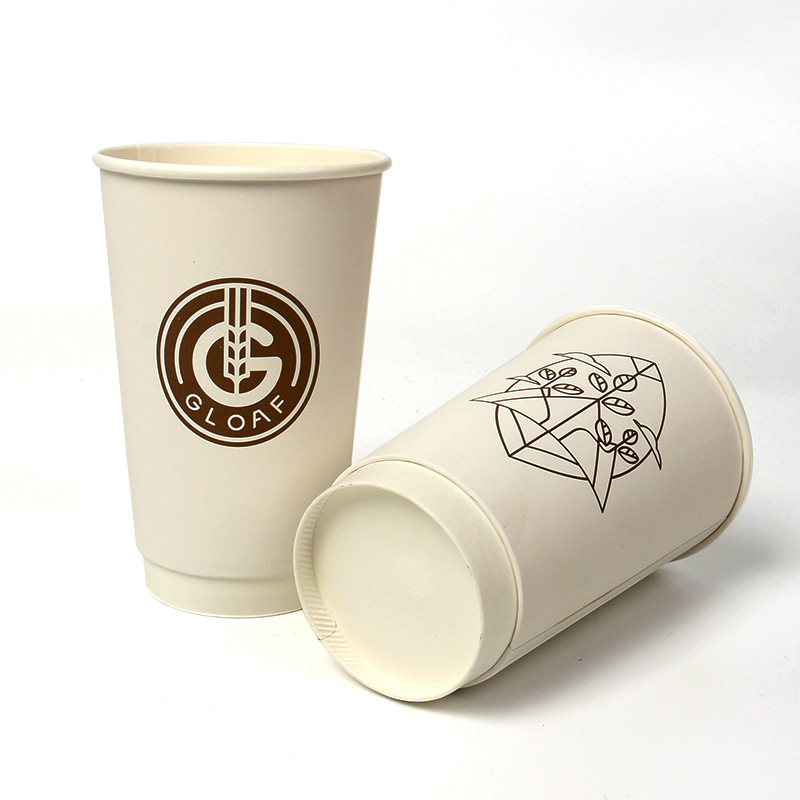

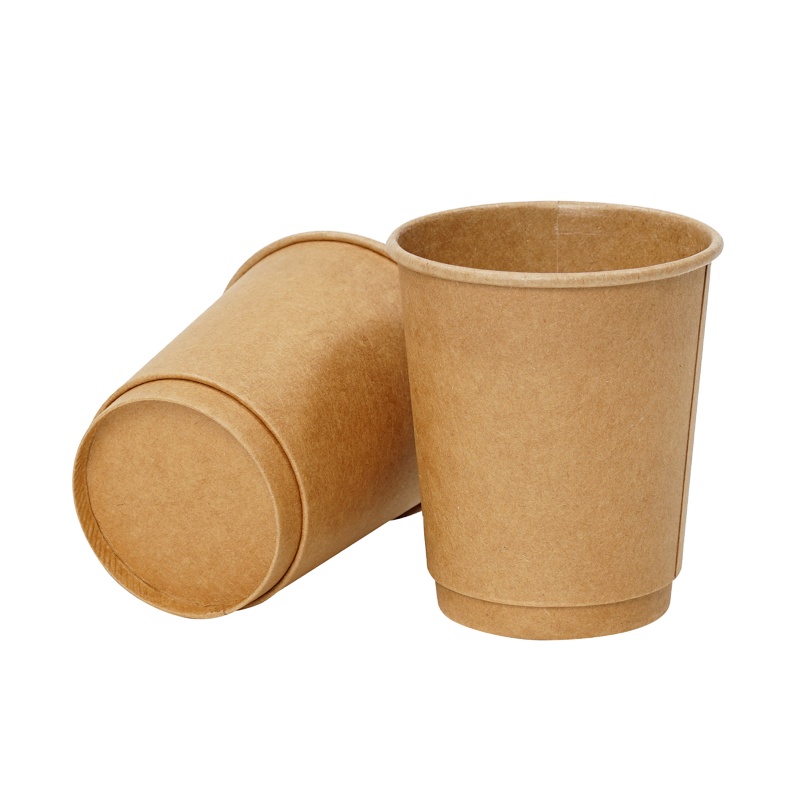

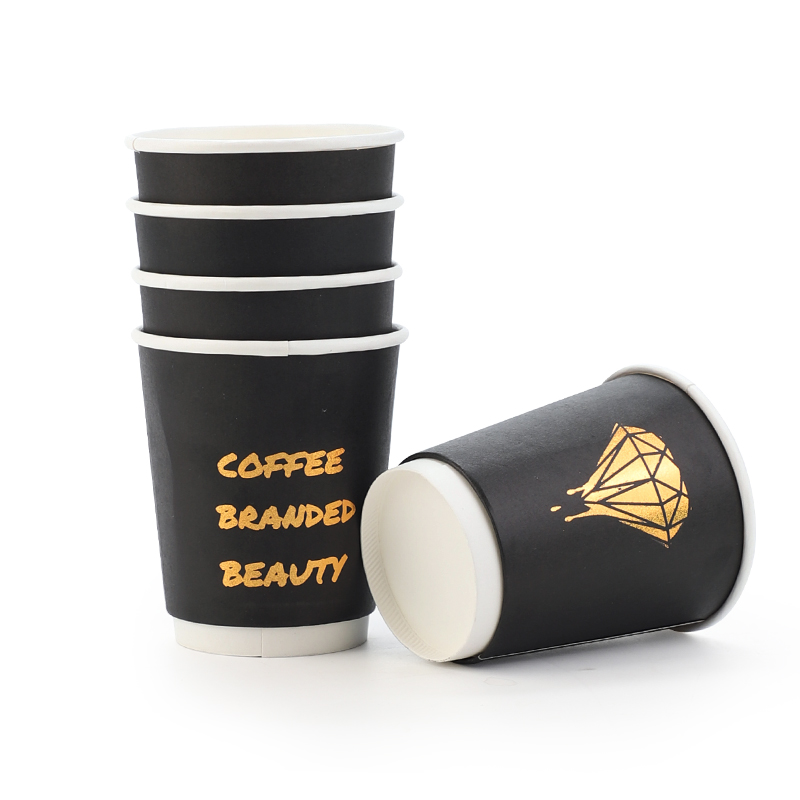

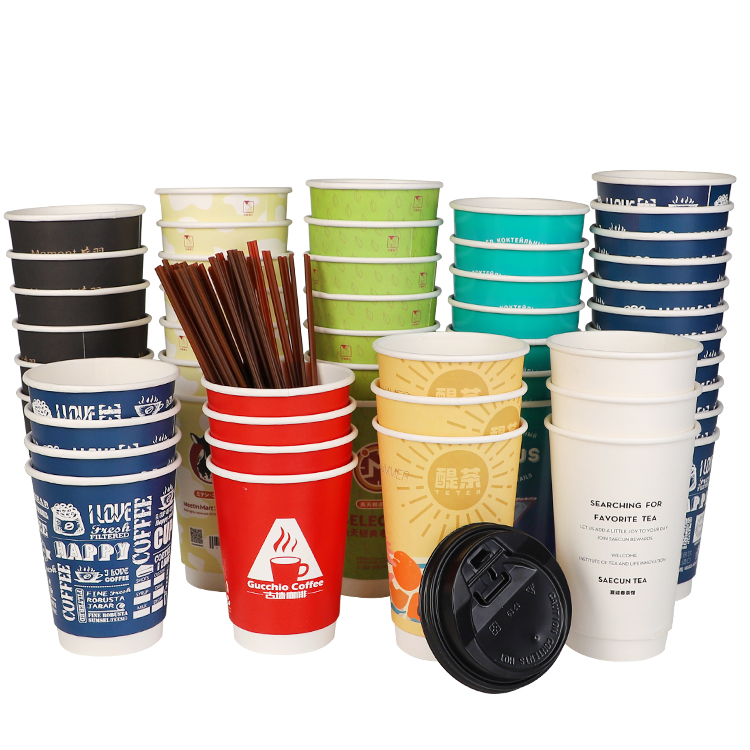

SM100 is designed to produce double wall cups with stable production speed 120-150pcs/min. It's working from paper blank pile, with ultrasonic system / hot melt gluing for side sealing and cold glue / hot melt gluing system for sealing between out-layer sleeve and inner cup. Double wall cup type can be double wall paper cups (both hollow double wall cups and ripple type double wall cups)or combine / hybrid cups with plastic inner cup and out-layer paper sleeves.

Send Inquiry

Product Description

Technical Specifications

Specification	SM100
Paper cup size of manufacture	2oz ~ 16oz
Production speed	120-150 pcs/min
Side sealing method	Ultrasonic / Hot melt gluing
Sleeve sealing method	Cold gluing / Hot melt gluing
Rated power	21KW
Air consumption (at 6kg/cm²)	0.4 m³/min
Overall Dimension	L2,820mm x W1,300mm x H1,850mm
Machine net weight	4,200 kg

📐

Top Diameter: 45 - 105mm

📐

Bottom Diameter: 35 - 78mm

📐

Total Height: max 137mm

⚙

Other sizes upon request

Key Features & Design Advantages

The feed table features a double deck design to prevent paper dust from entering the main frame, extending the service life of the lubrication gear oil in the machine frame.
The mechanical transmission is driven mainly by gears to two longitudinal shafts. The main motor’s power output is balanced from both sides of the motor shaft.
Equipped with an open-type indexing gear (turret 10 : turret 8 arrangement to make all functions more reasonable). Built with heavy load pin roller bearings for indexing gear cam follower, oil and air pressure gauges, and digital transmitters.
Folding wings and curling systems are fully adjustable above the main table. No adjustments are needed inside the main frame, making operation easier and time-saving.
Electric control cabinet: The entire machine is managed by a high-end PLC. All motors are independently controlled by frequency inverters, allowing adaptation to a wide range of paper characteristics, which is particularly useful during bottom forming and rim rolling.
Fault monitoring: Precise alarms for low paper levels, missing paper, paper jams, and missing bottom paper will display directly in the touch panel alarm window for simple troubleshooting.

Decades of manufacturing expertise in quality paper cup machinery guarantees stability, high efficiency, and competitive pricing.

Comprehensive after-sales service is a key part of the total package, ensuring a reliable on-going relationship after purchase, backed by a highly skilled technical team.

Services Offered

✔ Perform on-site installation and commissioning services

✔ Offer breakdown maintenance support

✔ Complete part-identification and part purchase

✔ Optimizing productivity and production quality consultation

Product Demonstration

Frequently Asked Questions

What paper cup sizes can this machine manufacture?

The machine is capable of manufacturing paper cups ranging in size from 2oz to 16oz. Custom sizes can also be evaluated upon request.

What is the production speed of the SM100?

The machine operates at a high production speed of 120 to 150 pieces per minute.

What sealing methods are used for production?

For side sealing, it utilizes Ultrasonic or Hot melt gluing. For sleeve sealing, it uses Cold gluing or Hot melt gluing.

How does the double deck feed table design benefit operations?

The double deck feed table prevents paper dust from entering the main frame, which protects and extends the service life of the lubrication gear oil.

How is the control system structured?

The machine is controlled via a high-end PLC. All motors are independently controlled by frequency inverters, facilitating easy adjustment for different paper characteristics during forming.

What after-sales services and technical support are available?

Services include on-site installation and commissioning, breakdown maintenance support, parts identification and purchase, and productivity optimization consulting.
