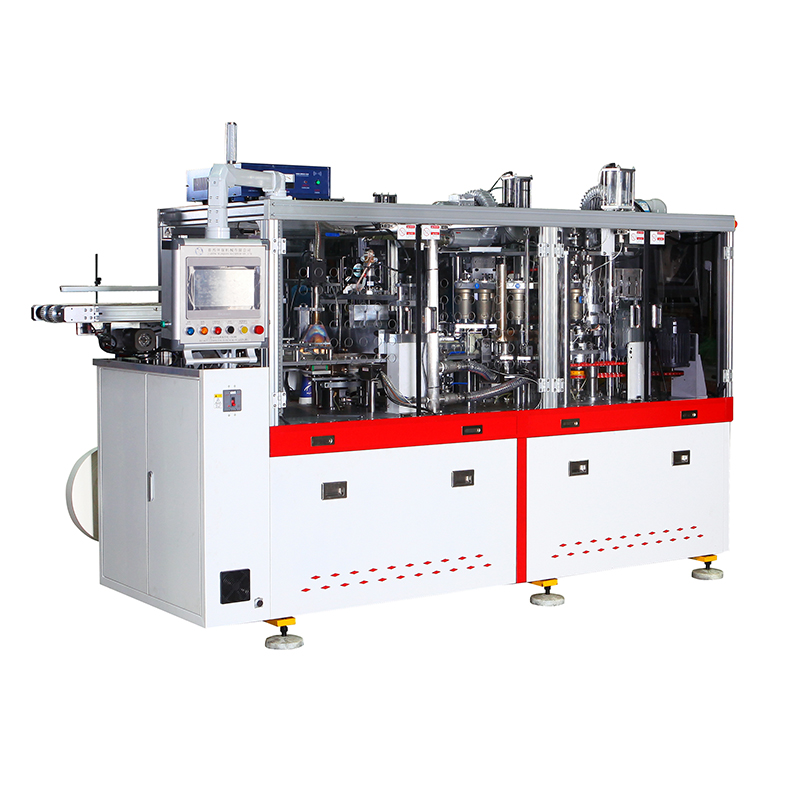

HCM100 is designed to produce paper cups and paper containers with stable production speed 90-120pcs/min. It's working from paper blank pile, bottom punching work from the paper roll, with the both hot air heater and ultrasonic system for side sealing. This machine especially designed for 20-24oz cold drinking cups and popcorn bowls.

Send Inquiry

Product Description

Specification	HCM100
Paper cup size of manufacture	5oz ~ 24oz
Production speed	90-120 pcs/min
Side sealing method	Hot air heating & ultrasonic
Bottom sealing method	Hot air heating
Rated power	21KW
Air consumption (at 6kg/cm2)	0.4 m³/min
Overall Dimension	L3,020mm x W1,300mm x H1,850mm
Machine net weight	4,500 kg
Paper Material grammage	170-350gsm
Paper Material	One side and two sides coated PE / PLA and water-based barrier coating materials

★ Production Dimension Limits & Materials

★ Top Diameter: 70 - 115mm

★ Bottom Diameter: 50 - 75mm

★ Total Height: 75 - 180mm

★ Other sizes available upon request

Transmission System

The mechanical transmission is driven mainly by high-precision gears to two longitudinal shafts. The main motor’s output is delivered from both sides of the motor shaft, ensuring a perfectly balanced force transmission.

Features an open-type indexing gear with a turret 10 : turret 8 arrangement to make all operational functions more reasonable and efficient.

Equipped with premium IKO (CF20) heavy-load pin roller bearings for the indexing gear cam follower to ensure long-term reliability.

Integrates advanced oil and air pressure gauges, along with high-end digital transmitters sourced from Japan Panasonic.

Machine Structure

The feed table features a double-deck design that effectively prevents paper dust from entering the main machine frame. The table width is optimized for convenient daily maintenance.

The simplified and highly effective transmission structure leaves ample physical room for easy repair and routine servicing.

The second turret is equipped with 8 working stations. This allows for additional customization, such as a third rim rolling station (for superior rim finish) or a grooving station.

Folding wings, knurling wheels, and brim rolling stations are fully adjustable above the main table. No adjustments are needed inside the main frame, saving time and simplifying operations.

Electrical Advantages

Advanced Control Cabinet: The entire system is controlled by a high-end Japan Mitsubishi PLC. All motors are independently regulated by frequency inverters, allowing the machine to easily adapt to a wider range of paper types.

Swiss-Made Heaters: Utilizes premium Swiss Leister heaters, combined with an auxiliary ultrasonic system for secure side seam sealing.

Intelligent Safety Monitoring: Real-time faults such as low paper levels, missing paper, or paper jams are accurately detected and displayed on the touch panel alarm window.

Frequently Asked Questions (FAQ)

Q What range of paper cup sizes can the HCM100 machine manufacture?

The HCM100 paper cup machine can manufacture a wide range of cup sizes from 5oz up to 24oz.

Q What is the production speed and power requirement for the HCM100?

The machine operates at a high production speed of 90 to 120 pieces per minute, with a rated power usage of 21KW.

Q Which sealing methods are used for the side and bottom of the cups?

It features a hybrid side sealing method combining hot air heating and ultrasonic technology, while the bottom sealing is completed via hot air heating.

Q What types of paper materials and grammages can be processed?

The machine handles paper grammages between 170-350gsm. It is compatible with single or double PE/PLA, PE/Aluminum, and water-based barrier or biodegradable coated paper boards.

Q How does the machine prevent dust build-up and ease maintenance?

The machine is designed with a double-deck feed table that prevents paper dust from entering the main frame. Additionally, folding wings, knurling wheels, and brim rolling stations are adjustable directly above the main table, eliminating the need for adjustments inside the frame.

Q What electrical and control brands are integrated into the machine?

The electrical system utilizes a high-end Japan Mitsubishi PLC for central control, independent frequency inverters for motors, Swiss Leister heaters, and Japan Panasonic digital transmitters and pressure gauges.
