CE Certification CM300 paper bowl forming machine Manufacturers, Supplier

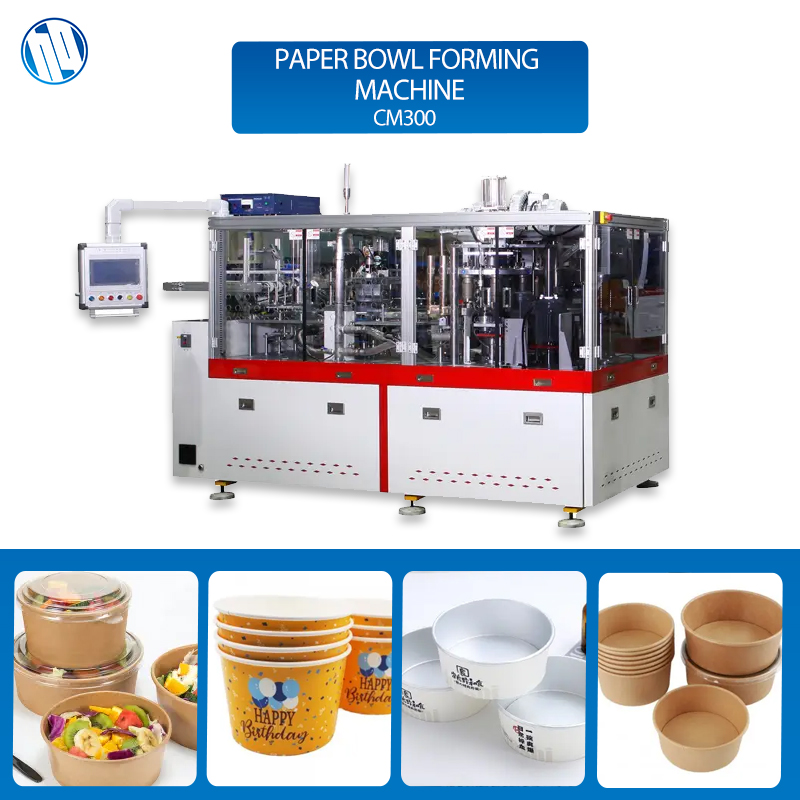

CM300 is designed to produce single PE / PLA or water-based biodegradable barrier materials coated paper bowls with stable production speed 60-85pcs/min. This machine is designed to produce paper bowls especially for food packaging, like chicken wings, salad, noodles, and other consumer products.

Send Inquiry

Product Description

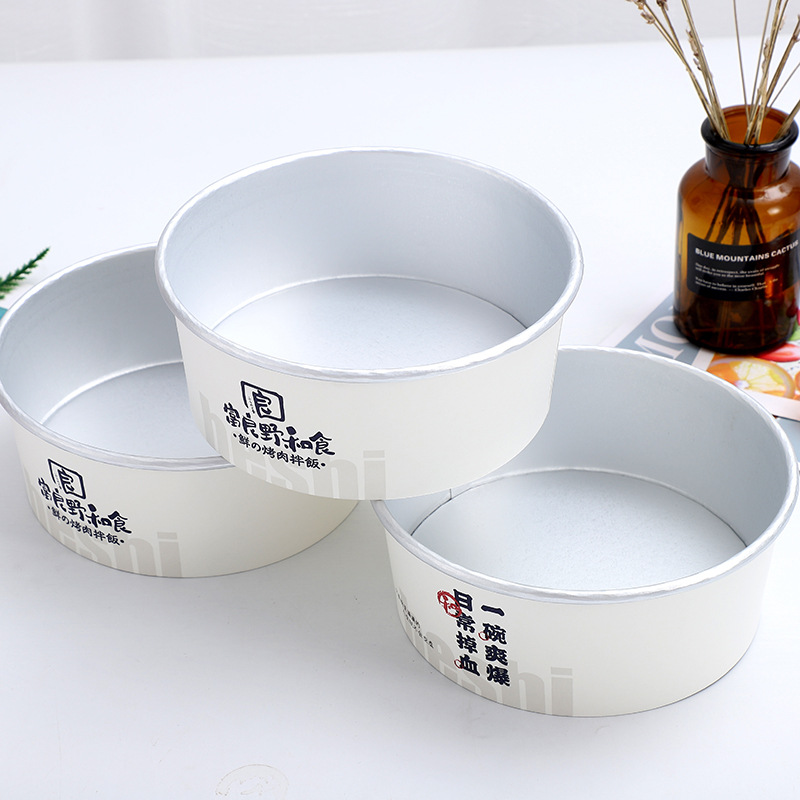

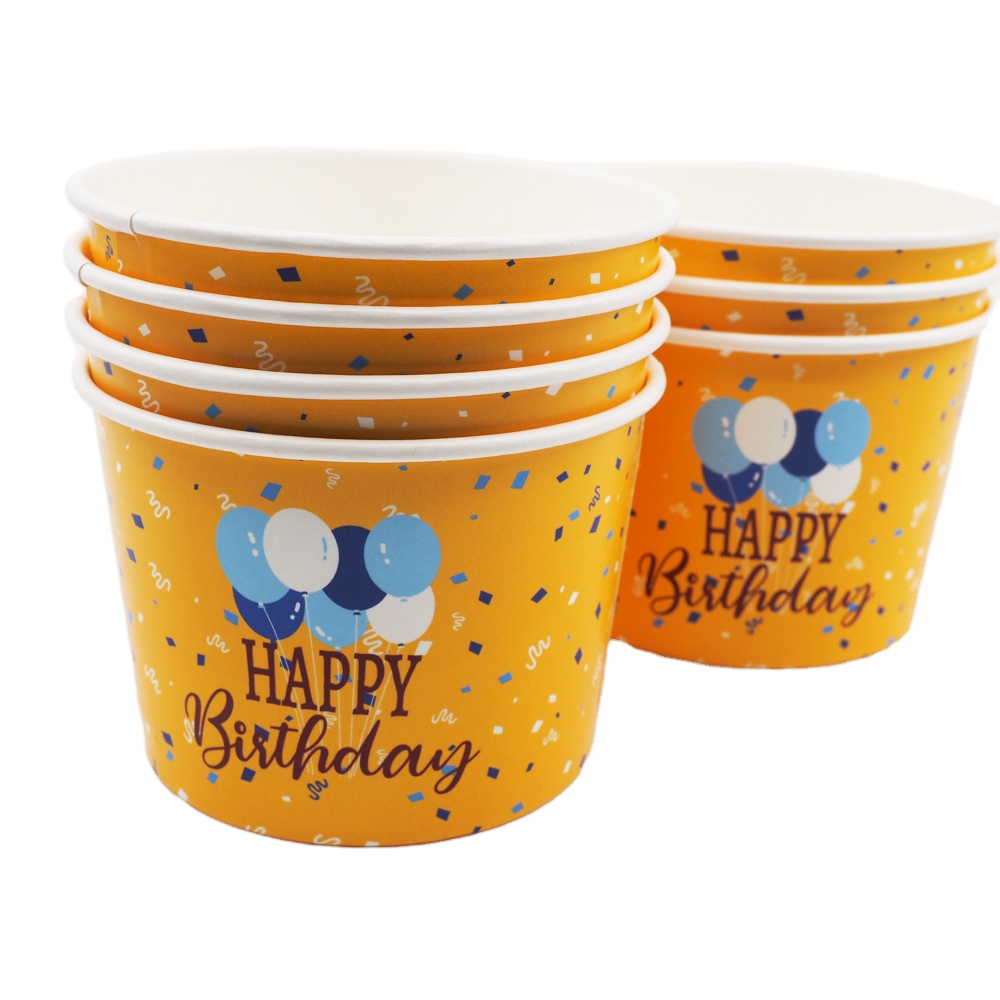

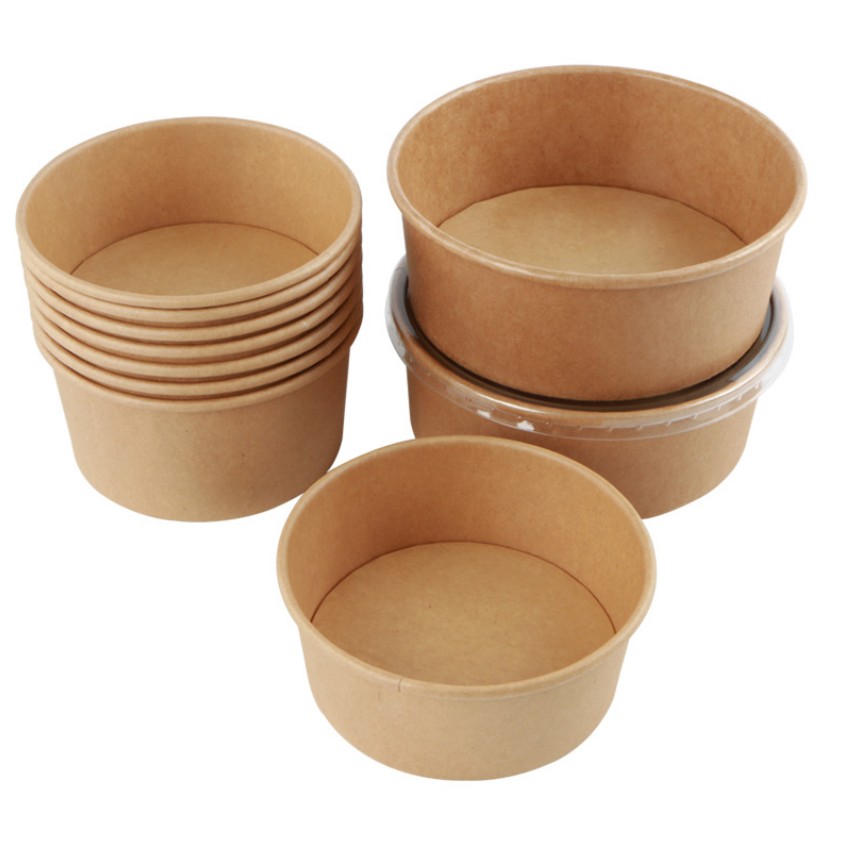

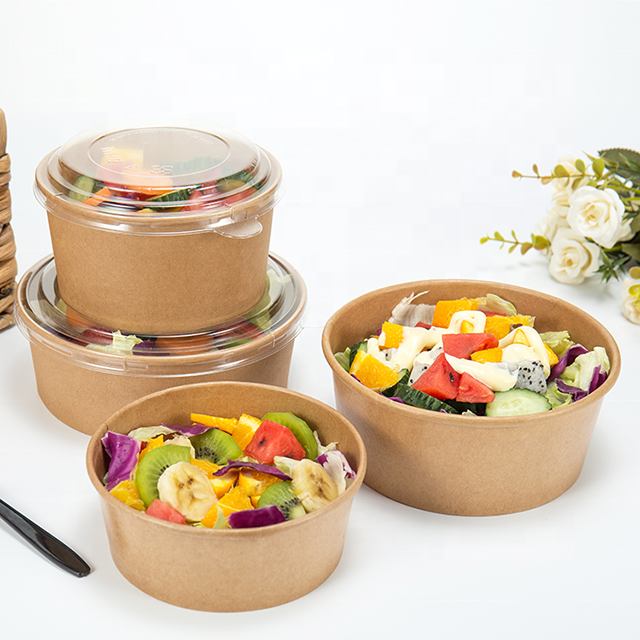

The CM300 is designed to produce single PE / PLA or water-based biodegradable barrier materials coated paper bowls with a stable production speed of 60-85pcs/min. This machine is designed to produce paper bowls especially for food packaging, like chicken wings, salad, noodles, and other consumer products. It processes single PE / PLA, double PE / PLA, PE / Aluminum, or water-based biodegradable materials coated paper board.

Transmission

Fully oil lubrication for mechanical transmission system, guaranteeing the service life of the machine.
The mechanical transmission operates mainly by gears to two longitudinal shafts. The structure is effective, simple, and leaves ample room for maintenance. The main motor's output comes from both sides of the motor shaft for balanced force transmission.
Open type indexing gear (turret 10 : turret 8 arrangement) optimizes overall function. High-end IKO (CF20) heavy load pin roller bearings are used for the indexing gear cam follower, accompanied by digital pressure transmitters.

Humanized Structure

Folding wings, knurling wheel, and brim rolling stations are adjustable above the main table; no adjustment is needed inside the main frame.
Double-deck paper blank conveying and side sealing stations are designed with an optimized structure and width, making maintenance highly convenient.

Electrical Design

Electric control cabinet: The entire machine is managed by a high-end PLC, with independent frequency inverter control for all motors to adapt to a wide range of paper characteristics.
Heaters use a well-known brand, complemented by ultrasonic heating for side seam sealing.
Faults such as low paper level, missing paper, or paper-jams will display precisely in the touch panel alarm window.
All electrical components utilize reliable international brands for superior performance and longevity.

Technical Specifications

Specification	CM300 Details
Paper cup size of manufacture	28oz ~ 85oz
Size Diagram Reference
Production speed	60-85 pcs/min
Side sealing method	Hot air heating & ultrasonic
Bottom sealing method	Hot air heating
Rated power	28KW
Air consumption (at 6kg/cm²)	0.4 m³/min
Overall Dimension	L3,020mm x W1,600mm x H1,850mm
Machine net weight	5,500 kg

Production Process Workflow

Paper blanks feeding → Side-seam heating → Folding & sealing → Cup sleeve transfer → Bottom forming & inserting → Male mandrel → Bottom heating 1 → Bottom heating 2 → Bottom oiling → Bottom curling → Bottom knurling → Semi-product transfer → Cup rim oiling → Rim curling 1 → Cup rim curling 2 → Discharge to counting & piling

Frequently Asked Questions (FAQ)

What types of barrier materials can the CM300 handle?

The CM300 is designed to process single or double PE/PLA, PE/Aluminum, and water-based biodegradable barrier materials coated paper boards.

What is the production speed and capacity of the CM300?

The machine runs at a highly stable production speed of 60 to 85 pieces per minute (pcs/min).

What range of paper bowl sizes can this machine manufacture?

It manufactures paper cups and bowls ranging from 28oz to 85oz. Standard dimensions include a Top Diameter of 150-185mm, Bottom Diameter of 125-160mm, and a Total Height of 40-120mm. Other sizes are available upon request.

How does the transmission lubrication system work?

The machine features a fully oil-lubricated mechanical transmission system, primarily operating via gears to two longitudinal shafts, ensuring a long mechanical service life and minimized maintenance requirements.

What heating methods are used for sealing?

It uses a combination of hot air heating (via Swiss Leister heaters) and ultrasonic systems for side seam sealing, and hot air heating for bottom sealing.

How does the machine alert the operator to errors or faults?

Any mechanical or feed faults, such as low paper level, missing paper, or paper-jams, will display precisely on the touch panel alarm window of the electrical control cabinet.
