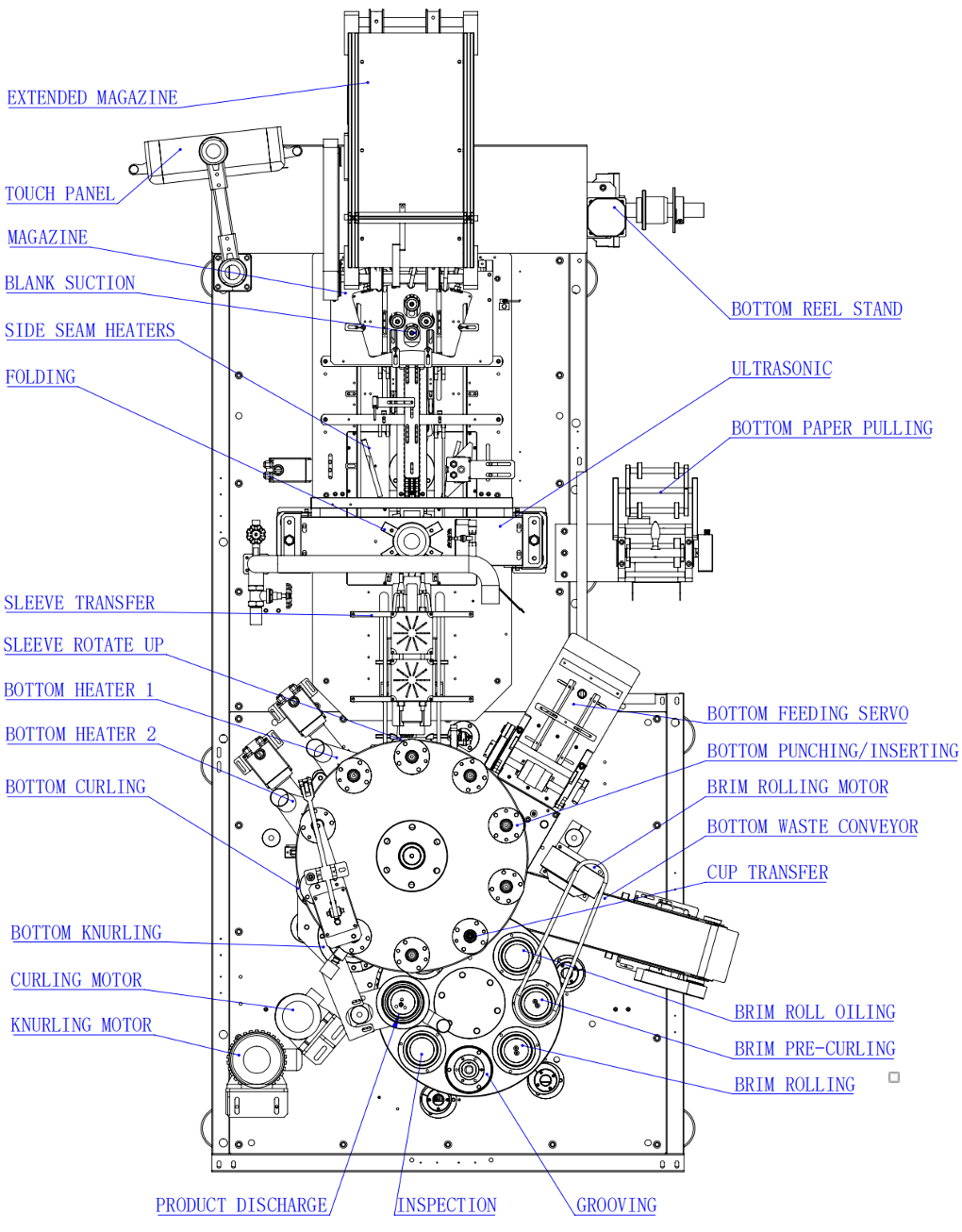

❋ The mechanical transmission is mainly by gears to two longitudinal shafts. The main motor’s output is from both sides of motor shaft, therefore the force transmission is balance.

❋ Transmission structure is reasonable, simplicity and effective, leaves enough room for repair and maintenance.

❋ The open type indexing gear (turret 10 : turret 8 arrangement to make all function more reasonable). We choose IKO (CF20) heavy load pin roller bearing for indexing gear cam follower, oil and air pressure gauges, digital transmitters are use (Japan Panasonic).

❋ The feed table is a double deck design to prevent paper dust go into the main frame. Table is designed with reasonable width, which is more convenient for maintenance.

❋ The second turret equipped with 8 working stations. So additional functions such as third rim rolling station (for better rim rolling) or grooving station can be realized.

❋ Folding wings, knurling wheel and brim rolling stations are adjustable above main table, no adjustment needed inside the main frame so that the work is much easier and time saving.

❋ Electric control cabinet: The whole machine is controlled by PLC, we choose Japan Mitsubishi high-end product. All motors are independent controlled by frequency invertors, these can adapt wider range of paper character.

❋ Heaters are using Leister, which is well-known brand made in Swiss, ultrasonic for side seam supplemental.

❋ Paper low level or paper missing and paper-jam etc., all these faults will display precisely in touch panel alarm window.
